How to Measure Motorcycle Chain Slack Correctly

A chain can be inside the printed specification and still be measured incorrectly. Manufacturers do not all define slack the same way: one manual may specify total up-and-down movement, another may specify the distance between the chain and swingarm, and each identifies a particular measurement location and motorcycle position. The number from another bike—or a generic internet chart—is not your specification.

Too little slack is usually the more dangerous adjustment error. As the rear suspension compresses, the distance between the countershaft, swingarm pivot, and rear axle changes. A chain that feels tidy on a stand can become extremely tight in the part of the suspension travel where those three points approach alignment, loading the chain, bearings, output shaft, and suspension. Excess slack can create snatch, noise, poor shifting, and the risk of contact or derailment.

Start with the exact manual procedure

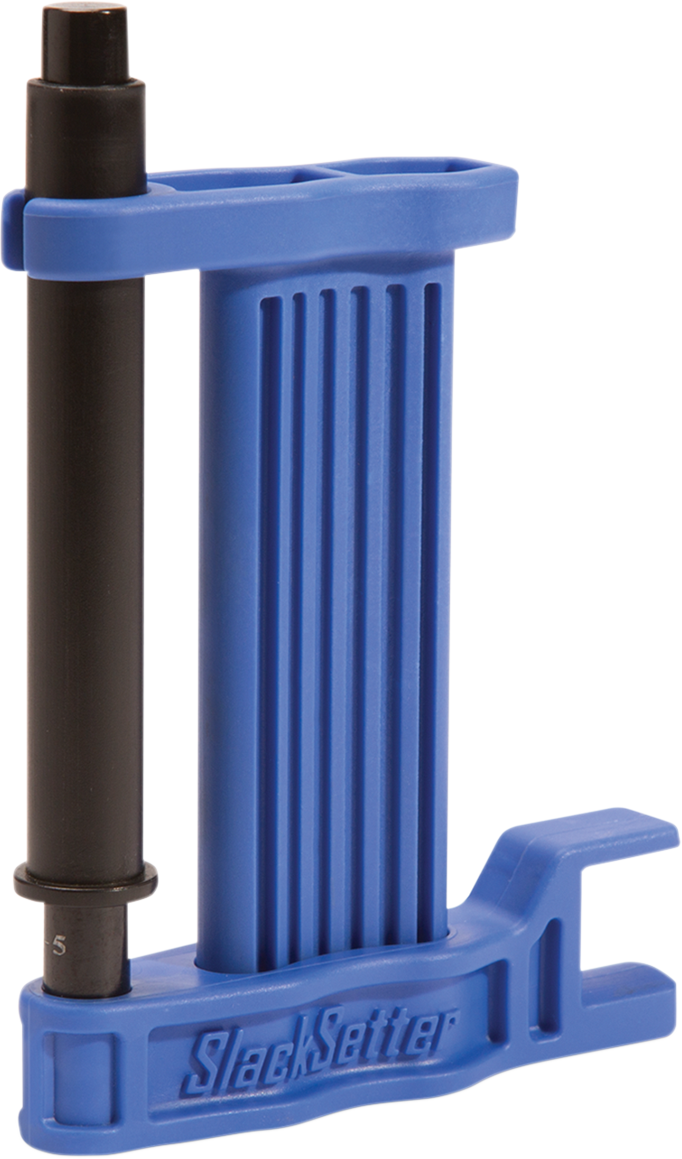

Read four details before touching the axle: the acceptable range, the measurement point, whether the motorcycle rests on its side stand or another support, and whether the rider or any load is specified. Confirm whether the manual wants total chain movement or a chain-to-swingarm dimension. Then use one measuring tool and one technique every time so your maintenance log is comparable.

Find the chain's tightest section

With the engine off, transmission in neutral, and hands clear of pinch points, rotate the rear wheel by hand and check several positions. Never do this with the engine running. Chains and sprockets wear unevenly; adjustment must be based on the tightest section. A large variation around one revolution can indicate tight links, uneven wear, damaged sprockets, or a chain near replacement. Adjustment does not repair that condition.

Measure and adjust

1. Park the motorcycle exactly as the manual describes.
2. Locate the specified point, commonly near the middle of the lower run.
3. Move the chain gently to the first reference point, then to the opposite point without forcing it.
4. Compare the measured travel or clearance with the manual's range.
5. If adjustment is required, loosen and adjust using the service procedure, moving both sides consistently.
6. Torque the axle and adjuster hardware to specification, then measure again at the tight spot.

Do not trust swingarm hash marks as proof of precise wheel alignment. They are useful references, but a dedicated alignment check can reveal disagreement. Also confirm that the rear brake, ABS wiring, cotter pin or locking device, and axle hardware are correctly restored.

Know when adjustment is not the answer

Inspect for hooked or pointed sprocket teeth, red-brown corrosion dust, damaged rollers, missing seals, stiff links, kinks, abnormal noise, and frequent need for adjustment. Replace worn chain and sprockets as a matched set unless the component manufacturers explicitly authorize another approach. Clean and lubricate with products compatible with the chain's seals, keeping lubricant away from the tire and brakes.

Bottom line: Use the motorcycle's own specification, measure at the specified location and support condition, find the tightest section first, and recheck after axle torque. Consistency matters more than guessing at a fashionable number.
