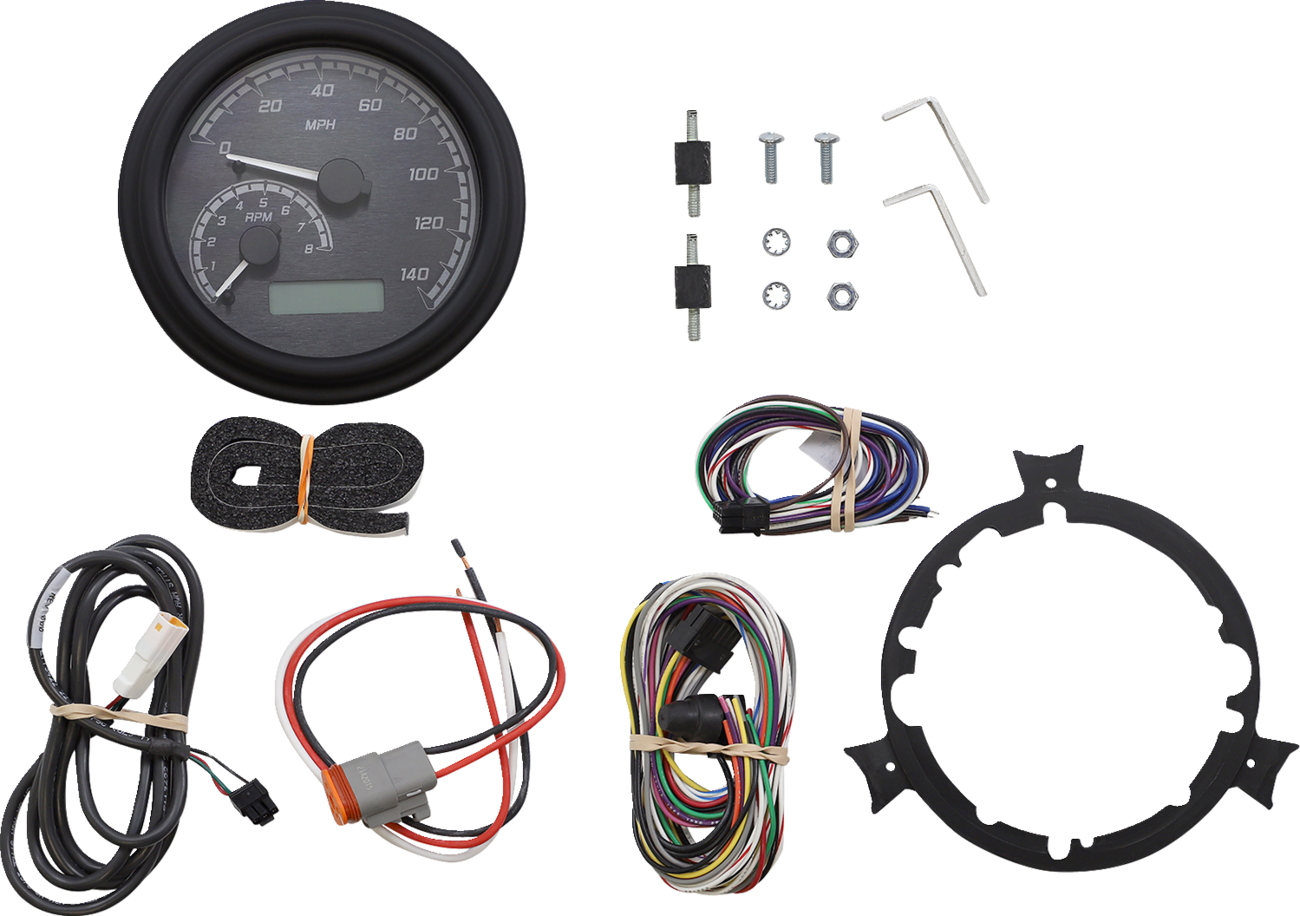

DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series
  • DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series
  • DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series
DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series

$595.00
Color
Availability In stock Ready for fulfillment
Fitment Confirm compatibility Use title, description, or ask us before ordering
Part number 22100380 DAKOTA DIGITAL
Shipping Fast U.S. shipping Processing 1 business day; delivery 2-5 business days
Need fitment help? Warranty & Guarantee Return policy Secure checkout
Real support before and after checkout Fitment help, order updates, warranty routing, and customer reviews stay close to the buy decision.
Trustpilot 4.0 Great Public rider feedback

DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series

DAKOTA DIGITAL MVX Series Analog Gauge System — MVX Series by DAKOTA DIGITAL is a tools listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

  • Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
  • Systems for '99-'03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
  • Systems for '11-'22 models feature 31 user-selectable colors or pointer, backlight and LCD message center
  • 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
  • Resettable miles to service with a warning (user settable countdown) and hour meter
  • Clock function (12-hour format)
  • Voltage readout with low-voltage alert
  • Cylinder head temperature sensor (if bike is equipped with factory sender unit)
  • Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019
  • Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
  • Security system indicator
  • Automatic turn signal cancelling compatible
  • Wait to start/check engine light function
  • Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
  • Wiring installation is cut/splice; not a direct plug-in gauge
  • Case diameter measures 4-1/4" and bezel diameter of 4-5/8"

Part Numbers

2212-0505, MVX-2004-KG-C, 2210-0380, MVX-2002-KG-K, 2212-0579, MVX-2011-KG-K, 2210-0379, MVX-2002-KG-C, 2212-0578, MVX-2011-KG-C, 2210-0381, MVX-2002-WG-C, 2212-0582, MVX-2011-WG-C, 2212-0506, MVX-2004-KG-K, 2212-0510, MVX-2004-WG-K, 2212-0509, MVX-2004-WG-C

Available Styles

MVX Fatbob Analog/Digital Gauge System / Black/Gray/Chrome; MVX Series Analog Gauge System / Black/Gray/Black; MVX Series Analog Gauge System / Black/Gray/Chrome; MVX Series Analog Gauge System / White/Gray/Chrome; MVX Series Fatbob Analog/Digital Gauge System / Black/Gray/Black; MVX Series Fatbob Analog/Digital Gauge System / White/Gray/Black; MVX Series Fatbob Analog/Digital Gauge System / White/Gray/Chrome

Available options: 10
