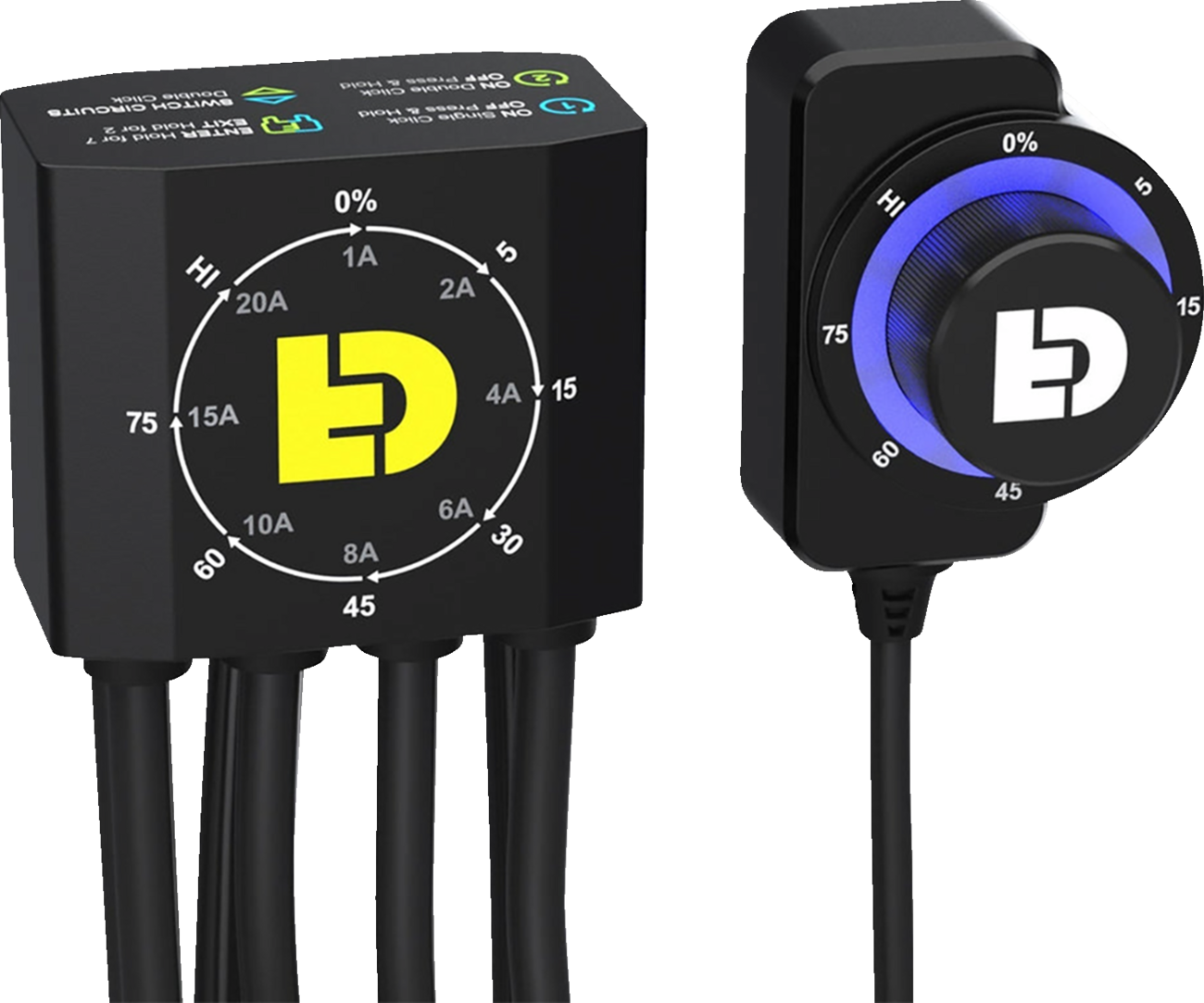

DENALI Lighting Controller - DialDim™ Controller / Lighting 2120-1382

DENALI Lighting Controller - DialDim™ Controller / Lighting 2120-1382 by DENALI is a lighting listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

• Integrates seamlessly with your vehicle's systems, offering intelligent flash features that enhance your visibility and safety on the road
• Easy installation with included 7/8" handlebar mount
• The controller housing and switch both feature a fully waterproof design with gaskets and o-rings at every joint to ensure hassle-free operation in outdoor environments
• On/off & dim - Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits
• High/low sync - Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch
• Stealth mode - A 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected
• Cancel with turn signal - When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal
• Flash as turn signal - When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals
• Strobe with horn - When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn
• Electronically fused circuits - Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped
• Voltage display indicator - Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8 V
• Low voltage cutoff - If the battery voltage drops below 10.8 V the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition

Part Numbers

2120-1382, DNL.WHS.20500

Available Styles

DialDim™ Controller / Lighting

Available options: 1
