FEULING PARTS Endurance Beehive® Valve Springs with Titanium Retainers

FEULING PARTS Endurance Beehive® Valve Springs with Titanium Retainers by FEULING PARTS is an engine parts listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
Direct bolt-in replacement up to 0.650" cam lift; no machining or rocker box clearancing required

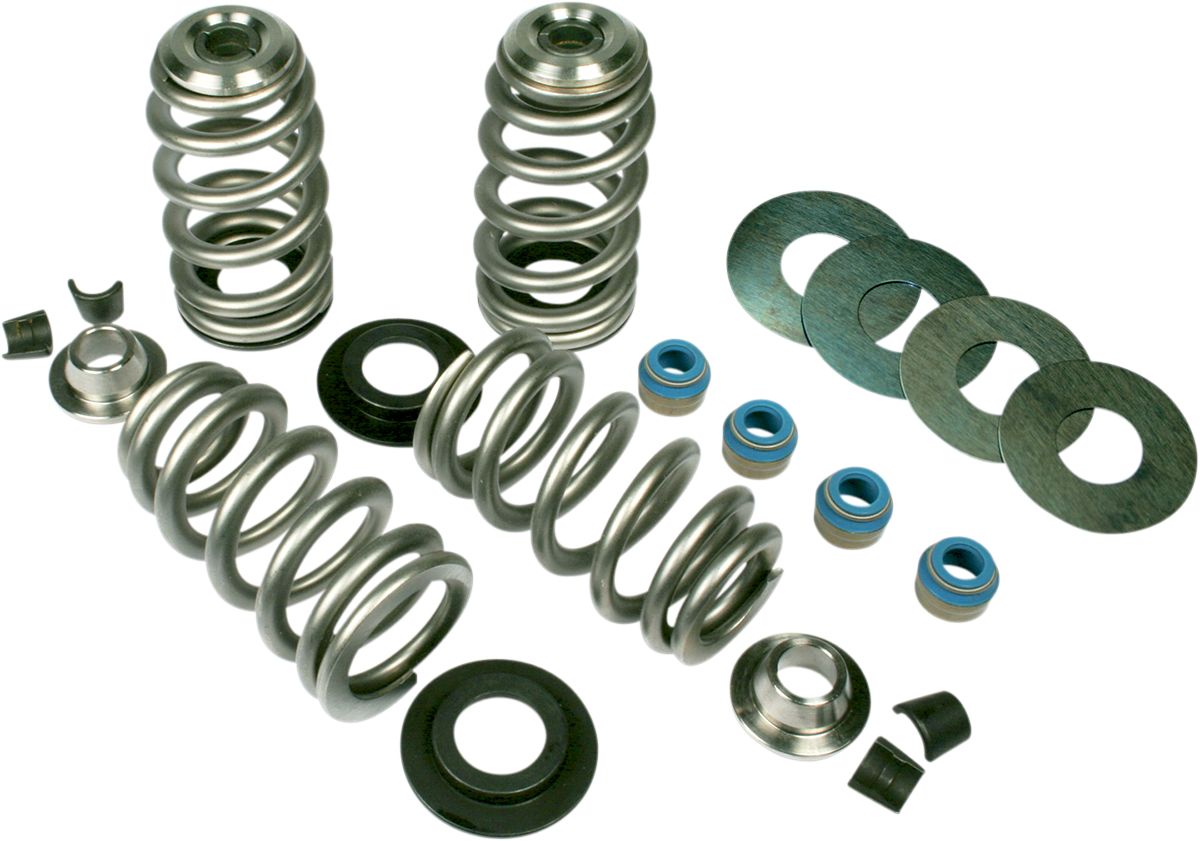

Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
Made in the USA
Seat lb / installed height:
198 lb @ 1.685" (0.535" lift)
194 lb @ 1.703" (0.553" lift)
190 lb @ 1.724" (0.574" lift)
187 lb @ 1.754" (0.604" lift)
185 lb @ 1.780" (0.630" lift)
160 lb @ 1.800" (0.650" lift)
375 lb @ 1.150" Open Height
Coil Bind @ 1.100"
Must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to 0.574" lift for '98-'04 Big Twin and '86-'03 XL and up to 0.650" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.

Part Numbers

0926-0851, 1100, 0926-0852, 1105

Available Styles

Valve Spring Kit / For 5/16" Valve Stem / Evolution Big Twin | Twin Cam | XL; Valve Spring Kit / For 7.00 mm Valve Stem / 88"/96"/103" Twin Cam | XL | XR1200
