FEULING PARTS High Load Beehive® Spring Kit - Valve Spring Kit / High Load Beehive with TI Retainers / M8 0926-3138

FEULING PARTS High Load Beehive® Spring Kit - Valve Spring Kit / High Load Beehive with TI Retainers / M8 0926-3138 by FEULING PARTS is an engine parts listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs

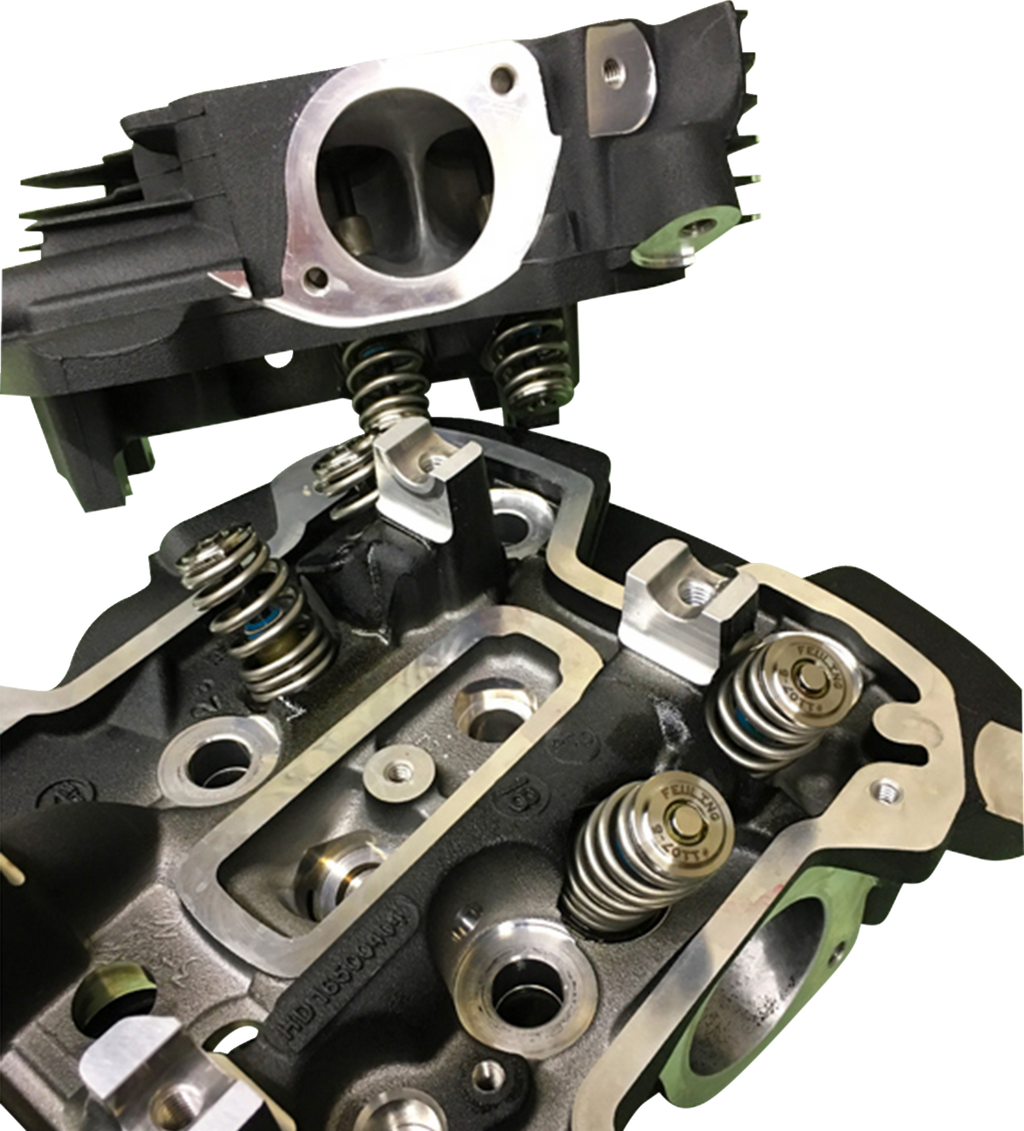

Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

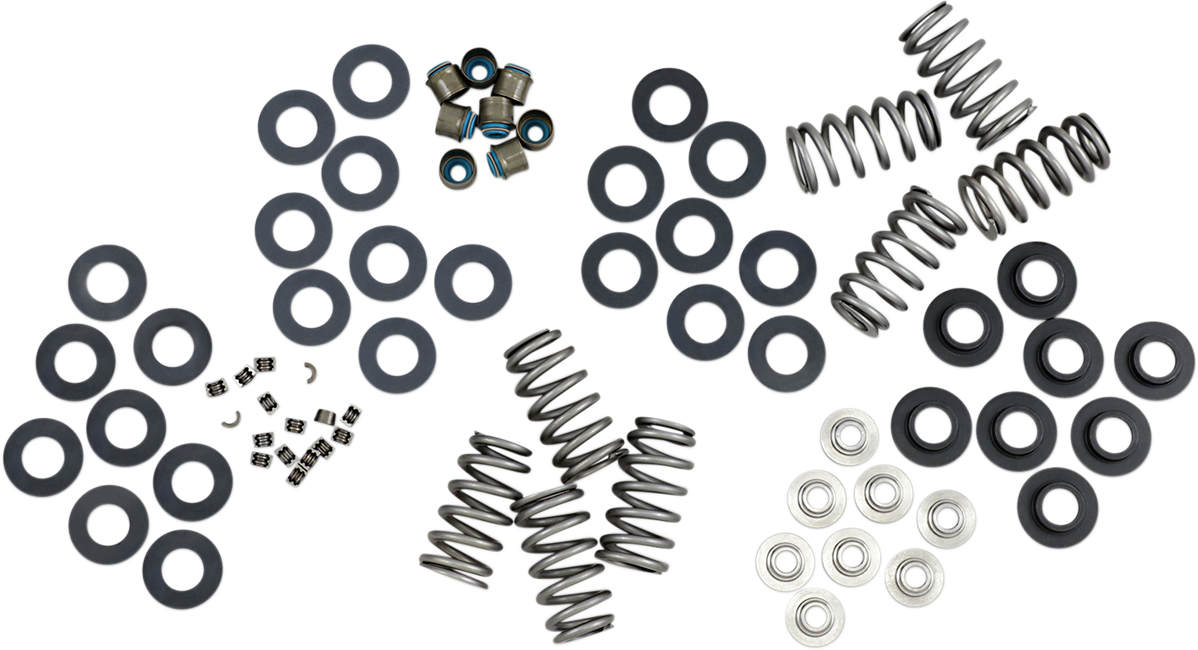

Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
Fits factory style 6.00 mm valve stem and triple groove.
Seat lb/Installed Height
151 lb @ 1.475" (0.485" Lift)
144 lb @ 1.498" (0.508" Lift)
143 lb @ 1.501" (0.511" Lift)
140 lb @ 1.511" (0.521" Lift)
124 lb @ 1.562" (0.578" Lift)
120 lb @ 1.582" (0.592" Lift)
304 lb @ 0.990" open height
Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
Made in the USA
Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
Coil Bind @ 0.945"
Recommended for +0.540” lift camshafts.

Part Numbers

0926-3138, 1207

Available Styles

Valve Spring Kit / High Load Beehive with TI Retainers / M8
