FEULING PARTS Race Series Oil Pump/Camplate Kit

$929.95

Availability In stockUsually processes in 1 business day Compatibility Ask about compatibility Shop Pay installments4 payments from $232.48

Shop Pay installment terms

Rates from 0–36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by Affirm lending partners. Options depend on your purchase amount, and a down payment may be required. State notices to consumers. Displayed payment estimates use the current product price. Taxes, shipping, discounts, and the final checkout total can change available options and payment amounts.

P4M+ rewards 4650 P4M+ points with this product. Plus automatic entry in our monthly giveaway. Nothing else to do.

5 pts / $1

Availability In stock Ready for fulfillment

Fitment Confirm compatibility Use title, description, or ask us before ordering

Manufacturer part number 09251256 FEULING PARTS

Shipping Processes within 1 business day Standard U.S. delivery is typically 2-5 business days after shipment

Fitment help Warranty support Returns & refunds Secure checkout

Parts-counter style support, online. Questions about fitment, ETA, or returns can be checked before ordering, and P4M stays responsible for order support after checkout.

Current offer Save 10% with code SUMMER10 Enter the code at checkout. The discount is confirmed there. Current offer Save $92.99 · $836.96 after SUMMER10 One tap applies the code and keeps this product selected. Apply SUMMER10

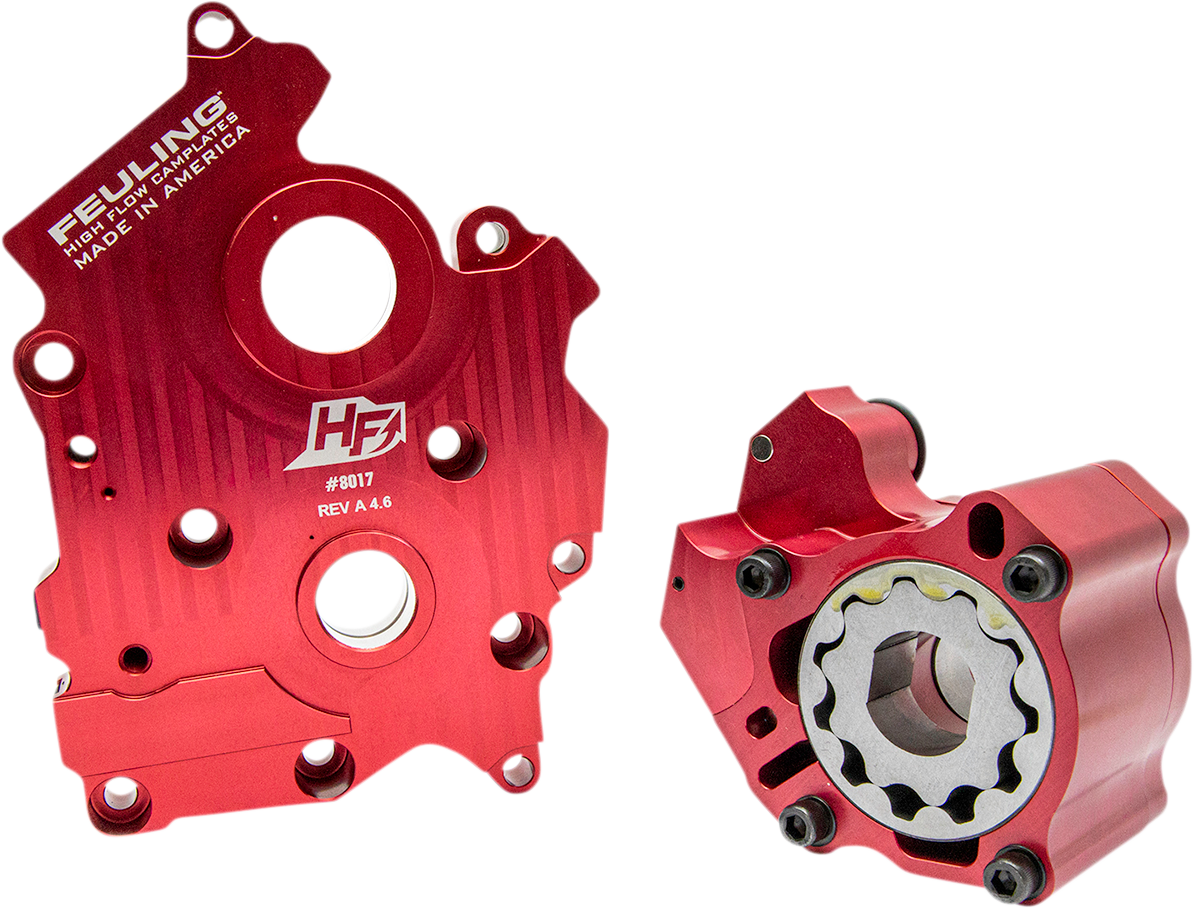

FEULING PARTS Race Series Oil Pump/Camplate Kit

FEULING PARTS Race Series Oil Pump/Camplate Kit by FEULING PARTS is a fluids & cleaners listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

Increase oil pressure, oil volume, engine oil flow and return oil scavenging
Quieter and smoother engine operation
Engine temperatures run 15°-25° cooler
Oil temperatures run 15°-30° cooler
10-30 lbs more psi of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
Includes a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature (Race Series® M-Eight oil pumps have deeper scavenge kidneys when compared to the HP+ kidneys for increased scavenge volume)
Includes FEULING® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or FEULING® OE+ camplates
Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, including matching the oil portholes throughout the camplate to the portholes in the engine case, which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
FEULING® oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
FEULING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
Made in the USA
FEULING® test results show as much as 50% reduction of engine sump oil level.
The M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.

Part Numbers

0925-1256, 7197, 0932-0231, 7199

Available Styles

Race Series Oil Pump with Plate / Oil Cooled Motors / '17-'24 M8; Race Series Oil Pump with Plate / Twin Cooled Motors / '17-'24 M8

Available options: 2
