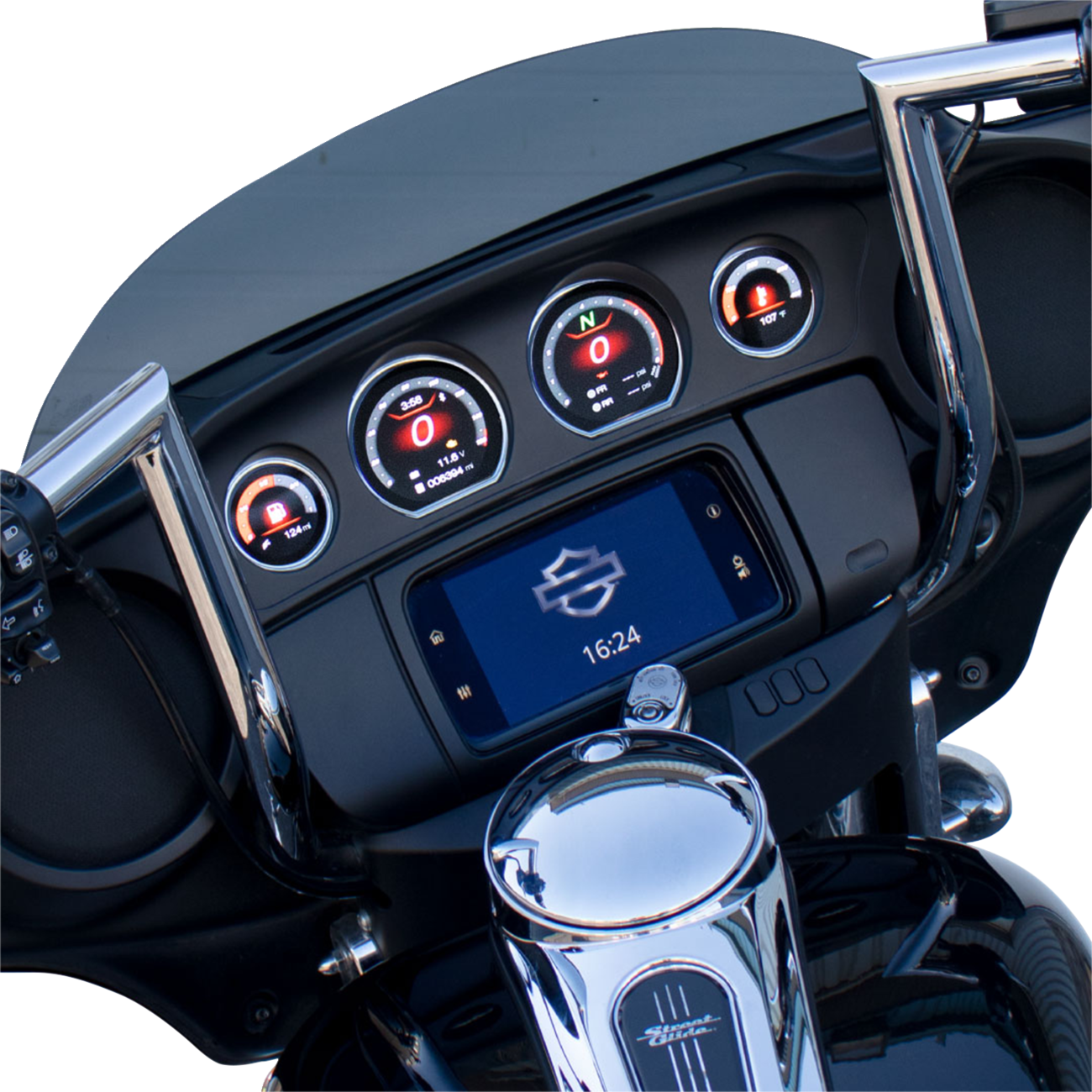

KOSO NORTH AMERICA HD-03X | TFT Gauge Set - Harley-Davidson® 2210-0702

$1,623.69

Factory order No charge now

Send us a request for this part. We will contact you to confirm ETA before payment or placing the factory/supplier order.

Name Email Phone Quantity

I understand I am not being charged right now and P4M will contact me to confirm ETA before payment.

P4M+ rewards 8118 P4M+ points with this product. Plus automatic entry in our monthly giveaway. Nothing else to do.

5 pts / $1

Factory order Request from supplier Not in local stock. We confirm ETA before payment.

Fitment Harley-Davidson Confirm exact year/model before install

Manufacturer part number 22100702 KOSO NORTH AMERICA

Shipping Factory-order timing Takes longer than an in-stock product; we confirm ETA first Shipping is not available to Alaska, Hawaii, or Puerto Rico.

Fitment help Warranty support Eligible 30-day returns Shipping rates & timing Secure checkout

Parts-counter style support, online. Questions about fitment, ETA, or returns can be checked before ordering, and P4M stays responsible for order support after checkout.

KOSO NORTH AMERICA HD-03X | TFT Gauge Set - Harley-Davidson® 2210-0702

KOSO NORTH AMERICA HD-03X | TFT Gauge Set - Harley-Davidson® 2210-0702 by KOSO NORTH AMERICA is a motorcycle part listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

Plug and play
Color customization with daytime and nighttime modes
Features a smartphone integration that gives full control of dashboard directly from the device
Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
Can see vehicle’s location on the app and never have to search for it again in crowded places
Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
K Link app also allows to check system health and maintenance with its diagnostics feature
Optional air pressure sensor for models equipped with air suspension is available separately
Specifications:
Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.

Part Numbers

2210-0702, BA064930

Available Styles

Harley-Davidson®

Available options: 1

Description
