S&S CYCLE High Volume/High Pressure (HVHP) Polished Billet Oil Pumps - HVHP Oil Pump with Gears / Universal 0932-0188

S&S CYCLE High Volume/High Pressure (HVHP) Polished Billet Oil Pumps - HVHP Oil Pump with Gears / Universal 0932-0188 by S&S CYCLE is a fluids & cleaners listing built for riders searching by exact product name, fitment, style, and part number.

Key Features

HVHP oil pumps have a new gear tooth profile with fewer but larger teeth that provides an increased oil volume for both supply and return-side of the pump
Supply-side gears are 9% wider than stock
Return gears are 28% wider than stock to ensure that the additional volume of oil supplied to the engine is scavenged and returned to the oil tank, reducing the amount of oil in the crankcase breather

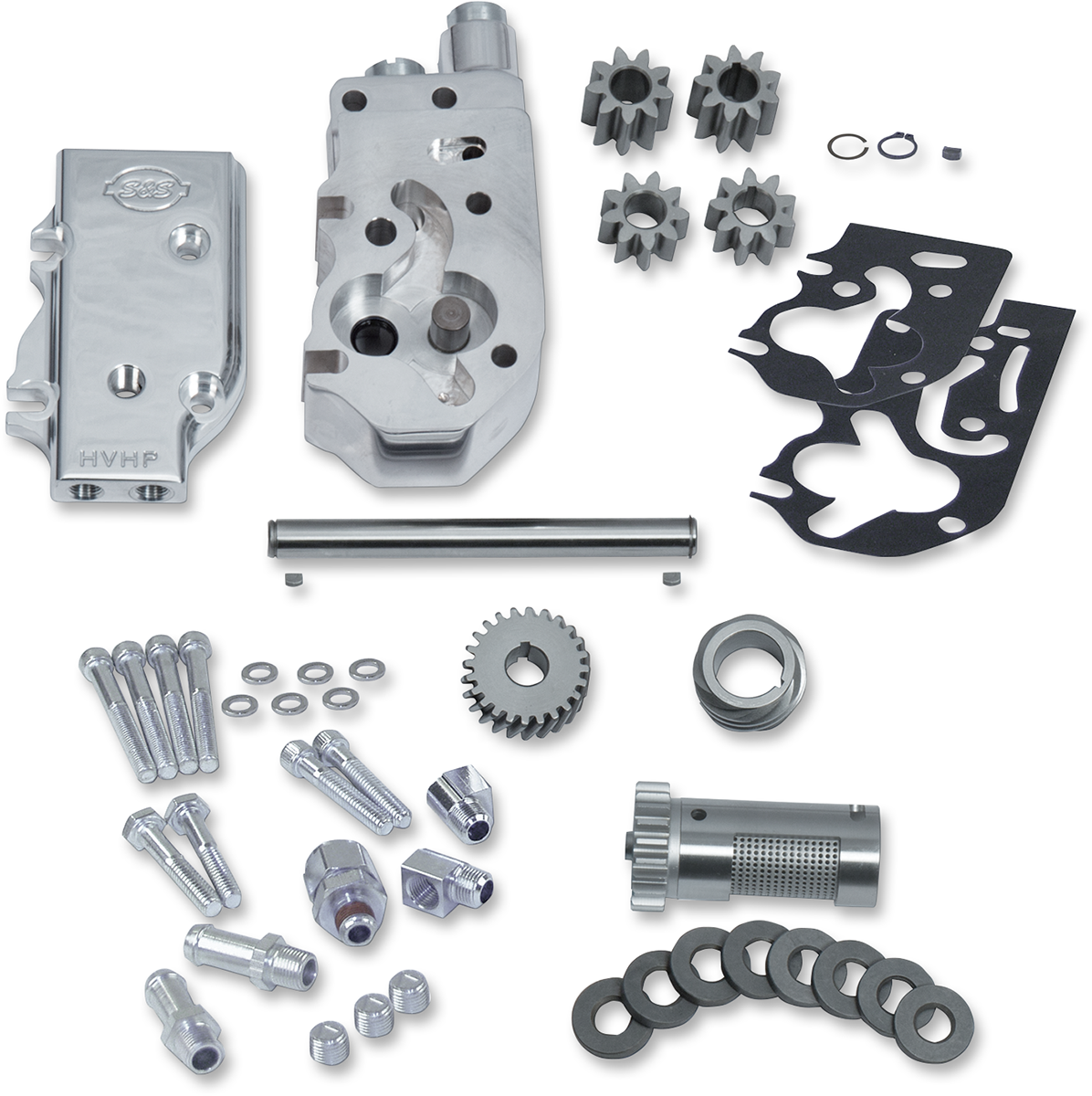

Kit includes supply gears, return gears, drive shaft, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware, oil pump drive shaft gear, oil pump pinion shaft gear, S&S breather gear and shim kit and instructions
Universal cover has a number of oil feed and return options allowing maximum flexibility for custom installations
Oil pumps only include supply gears, return gears, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve spring, cover screws with O-rings, miscellaneous hose fittings, plugs, screws, gaskets, mounting hardware and instructions
Made in USA

Part Numbers

0932-0188, 31-6307

Available Styles

HVHP Oil Pump with Gears / Universal
