VINTCO Top End Piston Kit - 50.00 mm - Honda

$261.85

P4M+ rewards 1309 P4M+ points with this product. Plus automatic entry in our monthly giveaway. Nothing else to do.

5 pts / $1

Availability Notify me when available Currently unavailable. We will email you after verified stock returns.

Fitment Honda Confirm exact year/model before install View fitment details

Manufacturer part number 09106438 VINTCO

Shipping Currently unavailable No ETA or reservation. We will email you after verified stock returns. Shipping is not available to Alaska, Hawaii, or Puerto Rico.

View fitment Warranty support Eligible 30-day returns Shipping rates & timing Secure checkout

Parts-counter style support, online. Questions about fitment, availability, or returns can be checked before ordering, and P4M stays responsible for order support after checkout.

Top End Piston Kit - 50.00 mm - Honda

Product Details

Brand	VINTCO
Part Number	0910-6425
Manufacturer Part Number	KTH10-0.5
Suggested Retail	$146.85
Units	KIT

Features

Made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance
Pistons are made in Germany and forged for strength and MoS2 (Molybdenum Disulfide) coated to ease break in

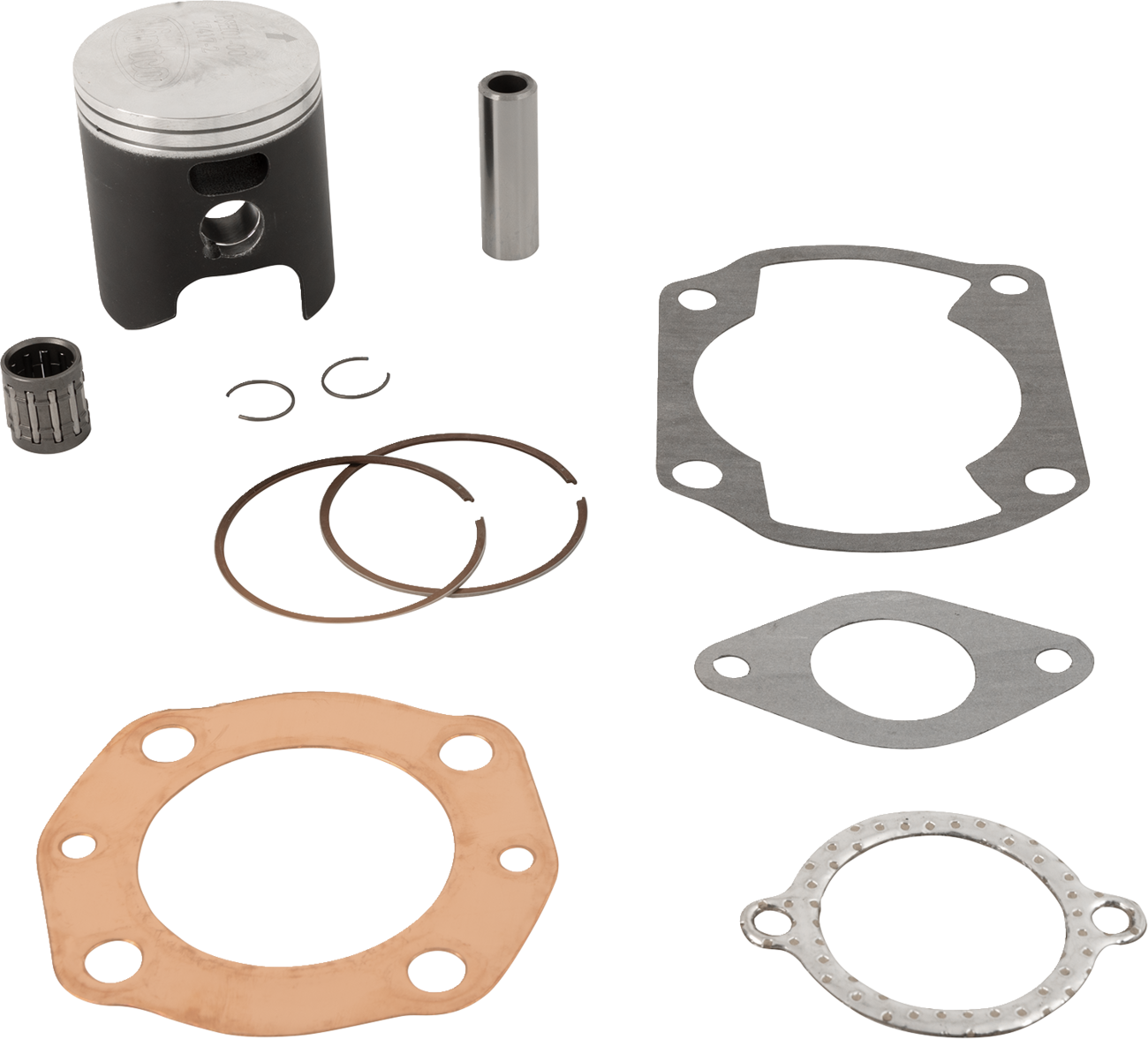

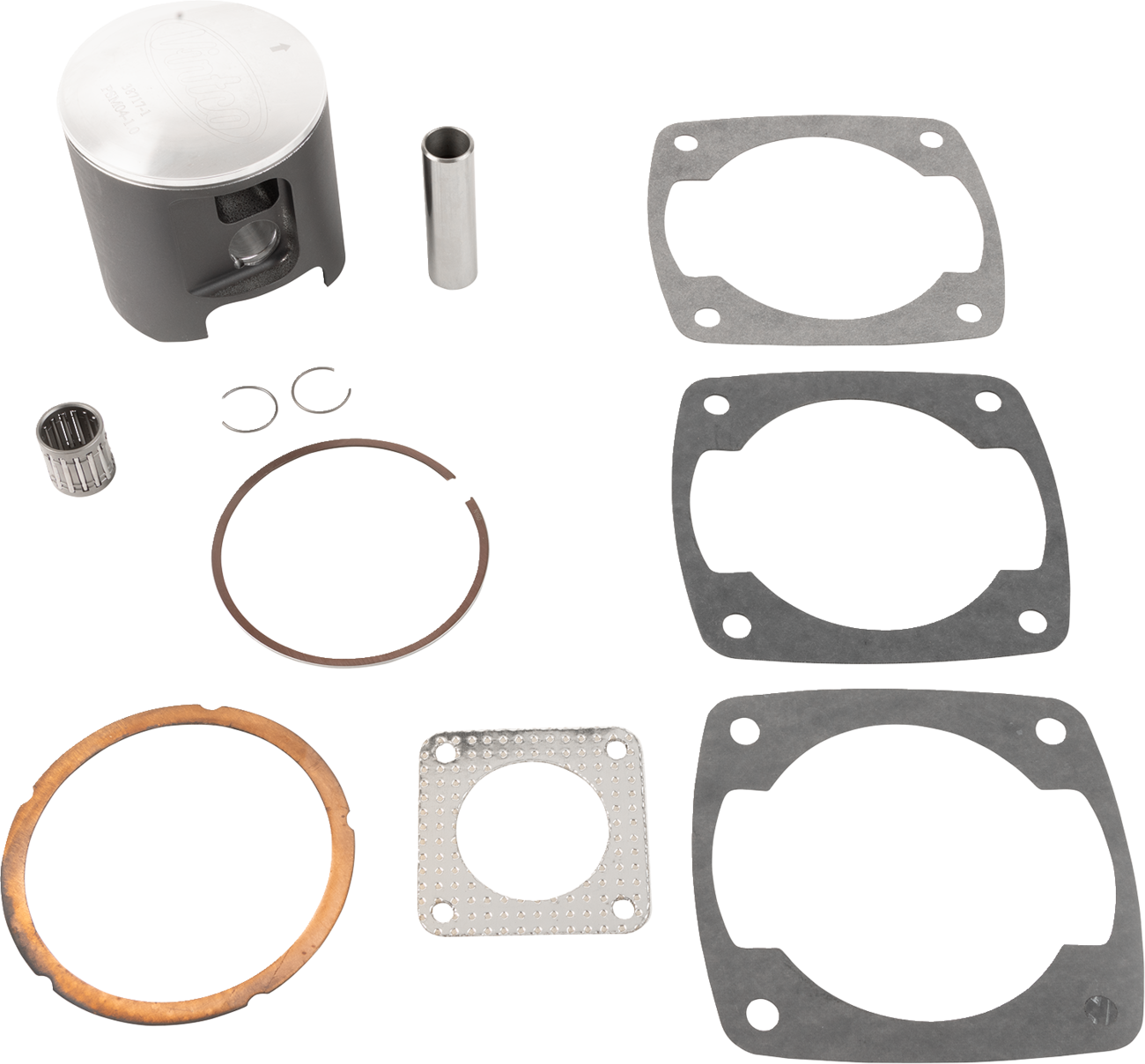

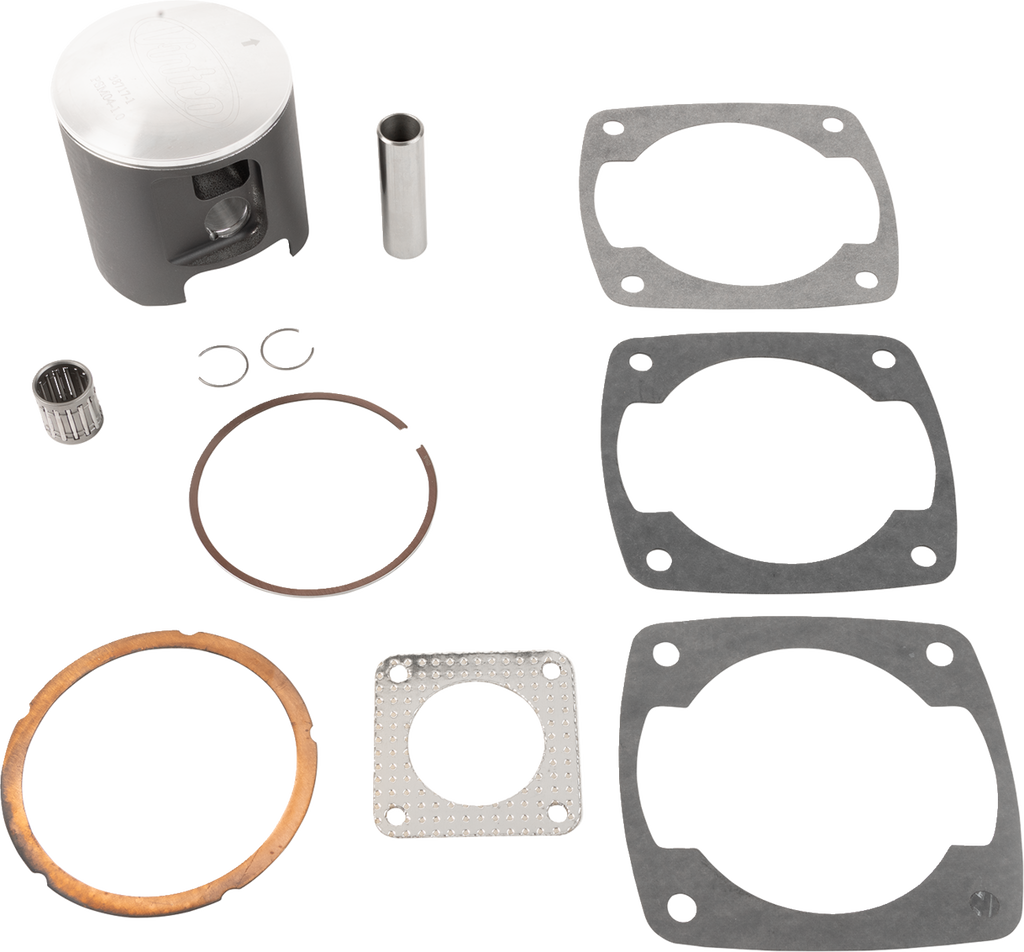

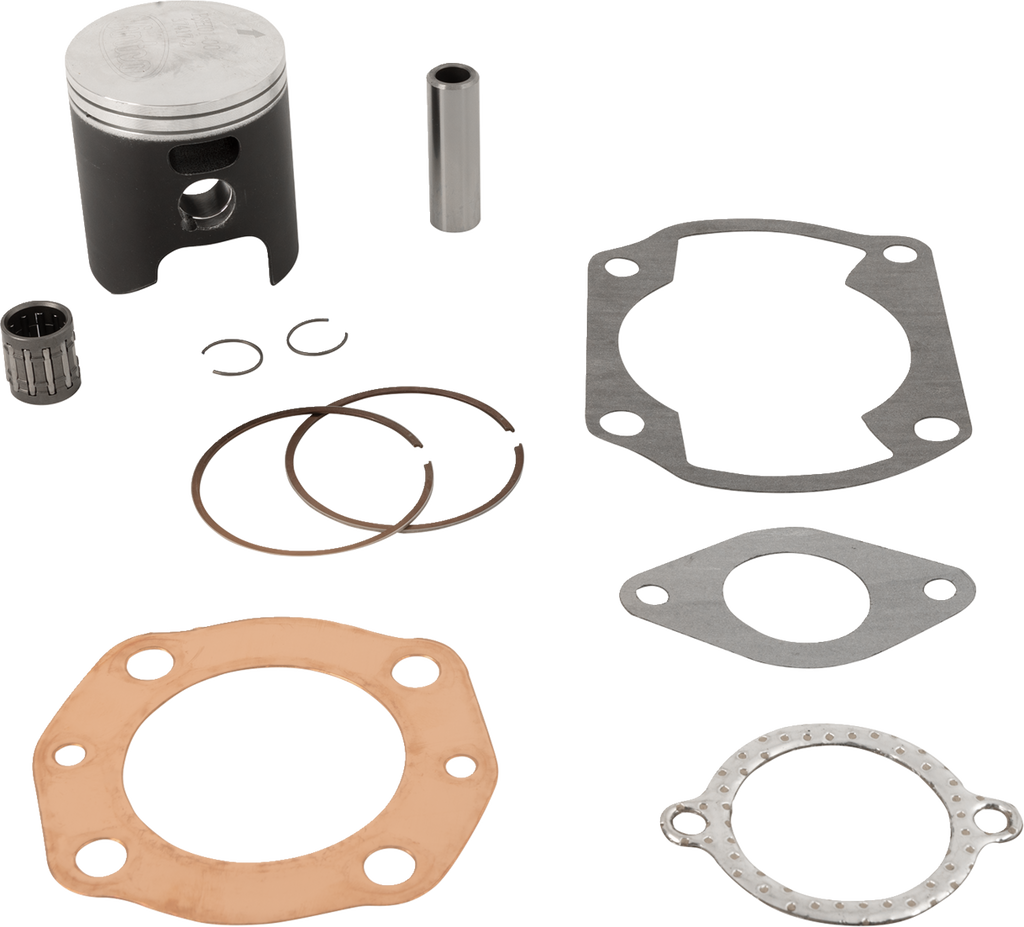

Kit includes a piston, rings, pin and clips, top end bearing and a full top-end gasket kit (head gasket, base gasket, intake gasket, and exhaust gasket)
Notes
OEM part numbers are provided to ensure correct fitmment.

Specs

Product Name	PISTON KIT
Style	TOP END
Piston Material	FORGED
Skirt Coating	MOLYBDENUM DISULPHITE
Bore Size	50.00 MM
Bore - Oversize	+0,50 MM / +0.50 MM
Piston Diameter	49.95 MM
Displacement	80 CC
Engine Type	2-STROKE
Units	KIT
Riding Style	OFF-ROAD

Package Info

Weight	0.86 lb
Length	7.75 in
Width	6.51 in
Height	4 in

Part Codes

Harmonized	EU - 84099100900 US - 8714.10.0050 SCHEDULE B - 8714.10.0090

Catalog References

26 PU OFFROAD / Page 1442

Fitment

Year	Make	Model	Position	Notes
1980-1981	Honda	CR80R

Part Notes

Kit Includes: • Piston Kit • Head Gasket OE #12251-169-000 • Reed Valve Gasket OE #14132-169-306 • Reed Valve Gasket OE #14133-169-306 • Base Gasket OE #12191-GC4-306 • Exhaust Gasket OE #18291-169-306 • Wrist Pin Bearing 12x17x16 mm
OEM part numbers are provided to ensure correct fitmment.

Part Notices

Part has notes

Fitment Disclosure

and

General Safety Warning

POSITION NOTES 1980-1981 Honda CR80R - - Fitment Disclosure This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided. General Safety Warning Failure to follow manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken in collecting accurate fitment information, LeMans Corporation accepts no liability for loss or damage resulting from errors or omissions.
